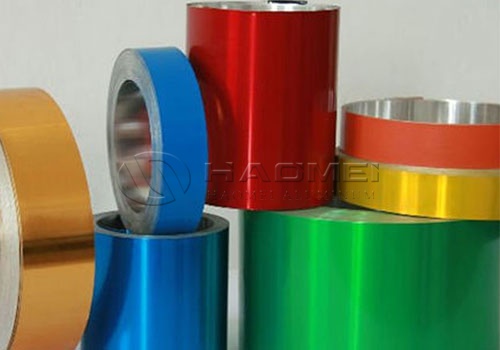

High Gloss Colors Aluminum Strip
High Gloss Colors Aluminum Strip is a pre-painted aluminum material designed for products that need a bright, polished visual effect without the weight, maintenance, or corrosion concerns of painted steel. Produced from aluminum coil and slit into narrow widths, it combines a reflective color coating with the practical advantages of aluminum: light weight, easy forming, strong weather resistance, and excellent recyclability.
Its glossy surface creates a clean, premium appearance for decorative trims, lighting components, appliances, signage, and architectural accessories. Colors can range from classic white, black, silver, red, and yellow to custom shades matched to project requirements. Depending on the coating system, the strip can provide a high-gloss finish for indoor applications or a durable gloss-retention finish for exterior exposure.
Material Structure and Functional Value
High gloss aluminum strip is generally made from 1xxx or 3xxx series aluminum alloy. The metal substrate is cleaned and chemically pretreated before primer and topcoat layers are applied in a continuous coating line. This process provides a consistent film thickness, stable color, and smooth surface across long coil lengths.
| Layer | Typical Material | Main Function |
|---|---|---|
| Aluminum substrate | 1050, 1060, 1100, 3003 alloy | Provides formability, low weight, and corrosion resistance |
| Chemical pretreatment | Chrome-free or chromate conversion layer | Improves coating adhesion and corrosion protection |
| Primer coat | Epoxy or polyester primer | Supports paint bonding and surface durability |
| High-gloss topcoat | PE, HDPE, PVDF, FEVE, or acrylic coating | Delivers color, gloss, scratch resistance, and weather protection |
| Back coat | Protective polyester or epoxy coating | Protects the reverse side during processing and service |
| Protective film, optional | PE removable film | Prevents scratches during transport, bending, and installation |
A high-gloss coating usually has a gloss value of 70 to 95 GU at a 60-degree measurement angle. The result is a vivid surface that reflects light more strongly than matte or textured coated aluminum. Gloss level, color consistency, and surface smoothness are especially important for visible trim parts and consumer-facing products.
Common Alloy Grades and Chemical Composition
The alloy should be selected according to bending radius, required strength, corrosion environment, and final product geometry. Pure aluminum grades offer excellent ductility, while 3003 aluminum provides added strength through manganese alloying.
| Alloy | Si % | Fe % | Cu % | Mn % | Mg % | Zn % | Al % | Typical Use |
|---|---|---|---|---|---|---|---|---|
| 1050 | ≤0.25 | ≤0.40 | ≤0.05 | ≤0.05 | ≤0.05 | ≤0.05 | Balance | Deep drawing, decorative trim, lighting |
| 1060 | ≤0.25 | ≤0.35 | ≤0.05 | ≤0.03 | ≤0.03 | ≤0.05 | Balance | General decoration, heat-transfer parts |
| 1100 | Si + Fe ≤0.95 | Included | 0.05-0.20 | ≤0.05 | - | ≤0.10 | Balance | Formed panels, reflectors, appliances |
| 3003 | ≤0.60 | ≤0.70 | 0.05-0.20 | 1.0-1.5 | - | ≤0.10 | Balance | Stronger trim, shutters, building accessories |
Chemical composition ranges are typical limits based on recognized alloy specifications. Final values should follow the agreed material standard and inspection certificate.
Technical Specifications
High Gloss Colors Aluminum Strip can be supplied as bare-edge or deburred-edge slit coil. Tight dimensional control helps prevent problems in roll forming, stamping, profiling, and automated assembly lines.
| Parameter | Standard Supply Range | Custom Capability |
|---|---|---|
| Alloy | 1050, 1060, 1100, 3003 | Other grades on request |
| Temper | O, H12, H14, H16, H18, H22, H24 | Matched to bending and strength needs |
| Thickness | 0.20-2.00 mm | Up to 3.00 mm for selected alloys |
| Width | 10-1,600 mm | Precision slit widths available |
| Coil inner diameter | 150 mm, 300 mm, 405 mm, 505 mm | Customer-defined cores possible |
| Coil weight | 100-5,000 kg | Suitable for manual or automated lines |
| Topcoat thickness | 15-35 μm | Higher film build available |
| Backcoat thickness | 5-12 μm | Enhanced protection available |
| Gloss level at 60° | 70-95 GU | Controlled to agreed sample |
| Color | RAL, Pantone, customer sample | Color matching service available |
| Surface protection | With or without PE film | Laser-film and deep-drawing film options |
Alloy Temper and Mechanical Properties
Temper has a direct effect on processing behavior. Softer O temper material is preferred for deep drawing or tight bends. H14 and H24 are widely selected for general roll forming, while H16 and H18 provide greater stiffness for flat decorative strips and components where shape retention is important.
| Alloy and Temper | Tensile Strength MPa | Yield Strength MPa | Elongation % | Processing Characteristics |
|---|---|---|---|---|
| 1050 O | 60-95 | 20-45 | ≥20 | Excellent for deep drawing and sharp forming |
| 1050 H14 | 85-115 | 65-95 | ≥4 | Balanced strength and bendability |
| 1060 H14 | 95-125 | 75-105 | ≥4 | Suitable for standard trim profiles |
| 1100 H24 | 110-145 | 95-125 | ≥3 | Good surface finish and moderate rigidity |
| 3003 H14 | 120-160 | 105-145 | ≥3 | Stronger option for shaped accessories |
| 3003 H24 | 145-185 | 130-170 | ≥2 | Higher rigidity for demanding fabrication |
Mechanical values are indicative and vary with thickness, production route, and applicable standard.
Coating Systems and Surface Performance
The coating chemistry should match the operating environment. PE coating is economical and suitable for many indoor decorative products. HDPE offers improved hardness and weathering. PVDF and FEVE systems are preferred when long-term outdoor color retention is required.
| Coating Type | Typical Film Thickness | Suitable Environment | Typical Features |
|---|---|---|---|
| PE polyester | 15-25 μm | Indoor and sheltered exterior use | Bright gloss, flexible processing, economical cost |
| HDPE | 20-30 μm | Moderate outdoor exposure | Better hardness, improved durability |
| PVDF | 25-35 μm | Harsh outdoor and architectural use | Excellent UV resistance and color retention |
| FEVE | 25-40 μm | Premium exterior decorative applications | High gloss retention and strong weather resistance |
| Acrylic | 15-30 μm | Interior panels and consumer goods | Clean appearance and good optical clarity |

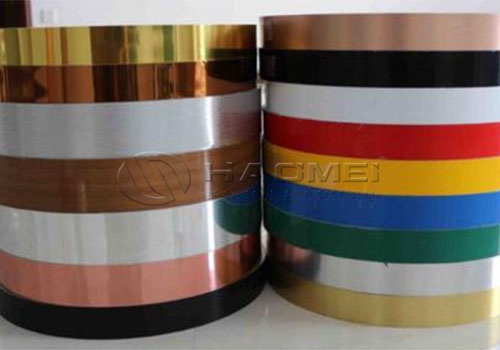

For projects requiring a bright surface with reliable coating adhesion, Color Coated Aluminum Strip provides a practical base material for slitting, profiling, stamping, and decorative fabrication.
Standards and Inspection Requirements
Production and inspection can follow international aluminum and coil-coating standards. Material requirements should identify alloy, temper, dimensions, coating type, gloss target, color tolerance, and protective-film needs before manufacture.
| Standard | Scope |
|---|---|
| ASTM B209 | Aluminum and aluminum-alloy sheet and plate requirements |
| EN 485 | Aluminum and aluminum alloy sheet, strip, and plate tolerances and mechanical properties |
| EN 573 | Chemical composition and alloy designation for aluminum wrought products |
| EN 13523 | Coil-coated metals testing methods, including gloss, color, bending, and corrosion tests |
| ASTM D523 | Specular gloss measurement |
| ASTM D3359 | Coating adhesion evaluation by tape test |
| ASTM B117 | Salt spray corrosion resistance testing |
| ISO 7724 | Color measurement and color difference evaluation |
Typical quality checks include thickness measurement, width tolerance, edge condition, coating thickness, gloss uniformity, color difference, T-bend performance, impact resistance, solvent resistance, and adhesion testing. For visible surfaces, inspection under controlled lighting is useful to identify waviness, scratches, roller marks, pinholes, and color variation.
Applications for Bright Decorative Aluminum Strip
High Gloss Colors Aluminum Strip supports lightweight, colorful design in many industries. Its painted surface removes the need for secondary spray painting in many fabrication processes, helping reduce handling time and improve appearance consistency.
| Application Field | Typical Products |
|---|---|
| Lighting | LED lamp housings, reflector trims, decorative lighting rings |
| Home appliances | Refrigerator trim, cooker panels, air-conditioner accessories |
| Architecture | Ceiling edge bands, wall panel trims, window accessories, shutters |
| Transportation | Interior decorative strips, luggage components, caravan trim |
| Furniture | Cabinet edges, shelving details, display frames, office partitions |
| Signage | Channel letters, sign borders, display profiles, retail fixtures |
| Electrical products | Cable wrapping, transformer bands, decorative electronic casings |
Processing and Handling Guidance
Use clean rollers, tooling, and work surfaces to preserve the gloss finish. A removable protective film is recommended when the strip will undergo multiple handling stages or contact with forming dies. During bending, select a temper that suits the bend radius and coating system; overly hard material may increase the risk of coating stress at sharp corners.
Store coils in a dry, ventilated area away from direct rain, condensation, corrosive chemicals, and excessive heat. Avoid stacking coils in ways that damage edges or create pressure marks. For exterior products, specify a coating system with proven UV and corrosion performance rather than relying on gloss level alone.
High Gloss Colors Aluminum Strip offers a polished visual effect, stable fabrication performance, and flexible color selection in one efficient material. With the correct alloy, temper, coating, and inspection standard, it can deliver durable decorative value across both indoor and outdoor applications.
