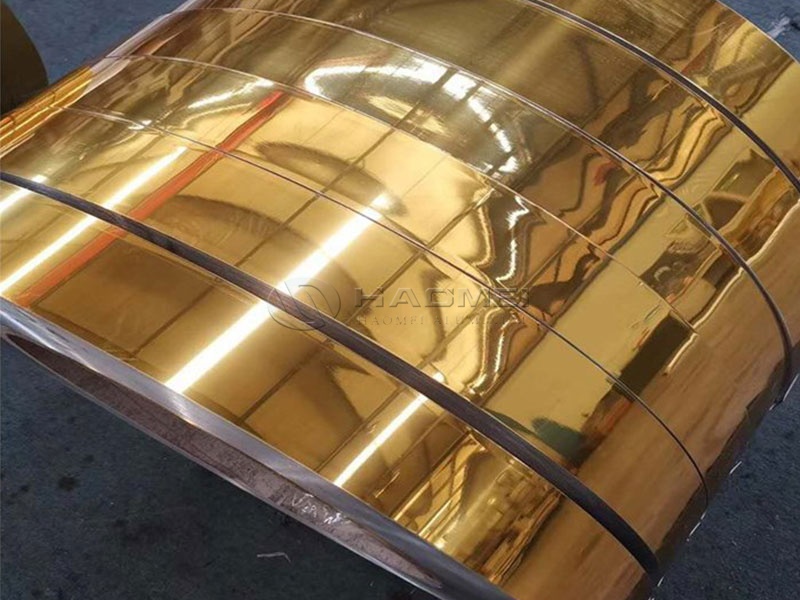

High Gloss Colored Aluminum Strips
High gloss colored aluminum strips are prepainted aluminum materials designed for applications where bright appearance, reliable corrosion resistance, and efficient fabrication are equally important. Produced from aluminum coil and slit into narrow widths, these strips carry a smooth, reflective color coating that gives finished products a polished visual effect without requiring secondary painting.
The material is widely selected for decorative trim, ceiling systems, household appliances, signage, lighting frames, roller shutters, packaging components, and architectural accessories. Compared with post-painted metal parts, high gloss coated strip can reduce processing time, improve color consistency, and help manufacturers maintain a clean, repeatable production line.
Bright Surface Performance and Practical Functions
The defining feature of high gloss colored aluminum strip is its reflective paint surface. Gloss is typically measured at a 60-degree angle, with common high-gloss products reaching 70 to 90 gloss units. This finish intensifies color depth, makes narrow profiles visually sharper, and supports premium-looking decorative components.
The aluminum substrate contributes low weight, good thermal conductivity, easy cutting, and excellent formability. The coating system acts as a protective barrier against moisture, mild chemicals, household contaminants, and ordinary outdoor exposure. Depending on the selected paint, the strip can also offer improved UV stability, stain resistance, and color retention.
| Function | Performance Benefit | Typical Customer Value |
|---|---|---|
| Decorative finishing | Bright, smooth, mirror-like color effect | Improves the visual grade of trims and panels |
| Corrosion protection | Coating isolates the substrate from humidity and contaminants | Extends service life in indoor and sheltered outdoor settings |
| Forming adaptability | Suitable for bending, roll forming, stamping, and profiling | Supports efficient production of shaped parts |
| Lightweight construction | Aluminum weighs far less than steel | Reduces handling effort and product mass |
| Color consistency | Coil coating provides stable color across production batches | Helps maintain a uniform brand appearance |
| Easy maintenance | Smooth gloss surfaces are simple to wipe clean | Suitable for appliances, furniture, and interior systems |
For projects requiring a broader selection of colors, coating systems, and surface options, our Color Coated Aluminum Strip range can be matched to the intended environment and fabrication method.
Material Structure and Coating System
A high gloss strip is normally made through a continuous coil-coating process. The aluminum coil is cleaned, chemically pretreated, primed, top-coated, oven cured, and slit to the requested width. Pretreatment improves coating adhesion and raises resistance to under-film corrosion. A back coat may be applied when the reverse side will be visible or requires additional protection.
| Layer | Typical Material | Main Purpose |
|---|---|---|
| Top coat | PE, HDPE, SMP, or PVDF coating | Color, gloss, weather resistance, surface protection |
| Primer coat | Epoxy, polyester, or polyurethane primer | Adhesion and corrosion resistance |
| Chemical pretreatment | Chromate-free or conversion coating | Improves bonding between aluminum and paint |
| Aluminum substrate | 1xxx, 3xxx, or 5xxx aluminum alloy | Strength, formability, and low weight |
| Back coat | Polyester or service coating | Reverse-side protection and appearance |
PE coatings are commonly used for indoor decorations, appliance panels, and general-purpose trim. HDPE and SMP systems offer better durability for semi-exterior applications. PVDF coatings are preferred where strong UV resistance, color retention, and long-term exterior performance are required.
Common Technical Specifications
High gloss colored aluminum strips can be supplied in coils, oscillated coils, or cut lengths. Dimensions, colors, hardness, and coating thickness should be selected according to the final forming process and service conditions.
| Parameter | Standard Supply Range | Custom Options |
|---|---|---|
| Aluminum thickness | 0.20-1.50 mm | Up to 3.00 mm by agreement |
| Strip width | 10-1,600 mm | Narrow slitting and special widths available |
| Coil inner diameter | 150 mm, 300 mm, 405 mm, 508 mm | Customer-specified core sizes |
| Coil weight | 0.5-5.0 tonnes | Based on handling equipment |
| Top coating thickness | 15-35 μm | 40 μm or more for special systems |
| Back coating thickness | 5-15 μm | Increased protection on request |
| Gloss level at 60° | 70-90 GU | Semi-gloss and matte finishes also available |
| Pencil hardness | HB-2H | Depends on paint formulation |
| Adhesion | Grade 0-1 | Tested after bending or cross-hatch evaluation |
| Color tolerance | ΔE ≤ 1.5-2.0 | Controlled against approved sample |
Alloy Grades and Temper Conditions
The alloy choice determines the balance between softness, strength, corrosion resistance, and bending behavior. Softer tempers are useful for deep drawing or tight roll forming, while harder tempers suit straighter trims and applications requiring greater dent resistance.
| Alloy | Typical Temper | Characteristics | Suitable Uses |
|---|---|---|---|
| 1050 | O, H14, H16, H18 | High aluminum purity, excellent formability, good corrosion resistance | Decorative strips, lamps, general trim |
| 1060 | O, H14, H16, H18 | Good conductivity and easy processing | Reflective components, appliance parts |
| 1100 | O, H14, H16, H18 | Strong corrosion resistance and good workability | Interior decoration, chemical-adjacent equipment |
| 3003 | H14, H16, H24 | Manganese-enhanced strength with reliable forming | Ceiling systems, shutters, building trim |
| 3105 | H14, H16, H24 | Good coating compatibility and moderate strength | Roofing accessories, siding trim, gutter profiles |
| 5052 | H32, H34 | Higher strength and excellent marine-atmosphere resistance | Durable enclosures and transport components |
Typical Chemical Composition
The following values represent commonly referenced composition limits in percent by weight. Actual material certificates should be reviewed for each order and standard.
| Alloy | Si | Fe | Cu | Mn | Mg | Zn | Ti | Al |
|---|---|---|---|---|---|---|---|---|
| 1050 | ≤0.25 | ≤0.40 | ≤0.05 | ≤0.05 | ≤0.05 | ≤0.05 | ≤0.03 | ≥99.50 |
| 1060 | ≤0.25 | ≤0.35 | ≤0.05 | ≤0.03 | ≤0.03 | ≤0.05 | ≤0.03 | ≥99.60 |
| 1100 | Si+Fe ≤0.95 | - | 0.05-0.20 | ≤0.05 | - | ≤0.10 | - | ≥99.00 |
| 3003 | ≤0.60 | ≤0.70 | 0.05-0.20 | 1.0-1.5 | - | ≤0.10 | - | Balance |
| 3105 | ≤0.60 | ≤0.70 | ≤0.30 | 0.30-0.80 | 0.20-0.80 | ≤0.40 | ≤0.10 | Balance |
| 5052 | ≤0.25 | ≤0.40 | ≤0.10 | ≤0.10 | 2.2-2.8 | ≤0.10 | - | Balance |
Standards and Inspection Methods
Production and inspection can be aligned with internationally recognized aluminum and coating standards. The exact combination depends on the application, destination market, and contractual specification.
| Item | Common Standard or Method | Inspection Focus |
|---|---|---|
| Aluminum sheet and strip | ASTM B209, EN 485, EN 573 | Dimensions, alloy, temper, mechanical properties |
| Coil-coated aluminum | EN 1396 | Coating quality and substrate requirements |
| Coating thickness | ISO 2808, ASTM D7091 | Dry-film thickness verification |
| Gloss measurement | ISO 2813, ASTM D523 | 60-degree gloss consistency |
| Adhesion | ISO 2409, ASTM D3359 | Cross-cut adhesion performance |
| Impact resistance | ASTM D2794 | Coating flexibility under impact |
| Pencil hardness | ASTM D3363 | Surface scratch resistance |
| Salt spray resistance | ASTM B117 | Corrosion performance under accelerated exposure |
| Color difference | ASTM D2244 | Color control using ΔE values |
Processing Guidance
High gloss surfaces should be handled with clean gloves and protected from abrasive contact. During slitting, roll forming, bending, or stamping, polished tools and suitable protective film help prevent scratches and pressure marks. Bend radius should be adjusted according to alloy, temper, coating type, and strip thickness. Softer O or H14 material generally supports tighter bends than H18 material.
For bonded assemblies, adhesives should be compatible with the paint system. If welding is required, coating removal around the weld area may be necessary. Protective film, if supplied, should be removed soon after installation and should not remain exposed to strong sunlight for extended periods.
Applications for High Gloss Colored Aluminum Strips
High gloss colored aluminum strips bring visual impact and durable performance to a wide range of products.
| Application Area | Typical Components | Preferred Material Features |
|---|---|---|
| Interior decoration | Edge bands, ceiling grids, wall trims, curtain accessories | Bright color, easy cleaning, accurate slitting |
| Home appliances | Refrigerator trims, cooker panels, air-conditioner parts | Scratch resistance, stable appearance |
| Lighting products | Lamp housings, reflectors, decorative frames | Light weight, reflectivity, forming capability |
| Signage and display | Letter edging, display frames, promotional panels | Strong color expression and smooth finish |
| Building accessories | Shutter parts, gutter covers, roof trim | Corrosion resistance and weatherable coating |
| Furniture and cabinetry | Decorative edging, drawer trims, panel borders | Premium appearance and easy fabrication |
High gloss colored aluminum strip provides an efficient path to attractive, durable finished components. By matching alloy temper, coating chemistry, gloss requirement, and dimensional tolerance to the end use, manufacturers can achieve dependable processing performance with a vivid, polished surface.
