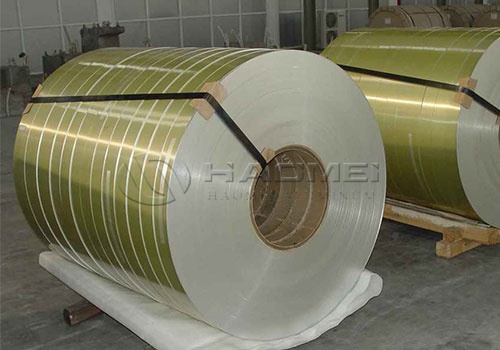

Good Gloss Colors Painted Aluminum Strip
Good gloss colors painted aluminum strip is more than aluminum with a decorative layer. Its reflective finish can make a compact appliance edge, ceiling trim, shutter slat, sign frame, or cable wrapping component look cleaner, brighter, and more refined. At the same time, the painted surface protects the metal from weather, moisture, fingerprints, and daily handling.
The most successful glossy aluminum strip is created when alloy selection, temper, pretreatment, paint chemistry, and forming requirements are considered together. A vivid red strip that looks excellent on a flat coil may crack at a tight bending radius if the temper is too hard. A mirror-like white finish can lose its visual appeal if coil handling introduces fine scratches. For this reason, gloss should be treated as a functional surface property, not simply a color preference.
What Creates a Good Gloss Finish
Gloss is the amount of light reflected by a surface in a controlled direction. It is commonly measured at a 60-degree angle with a gloss meter. For painted aluminum strip, a high-gloss surface is often specified in the range of 70 to 90 gloss units, while medium-gloss finishes may range from 30 to 70 gloss units. The requested level depends on the application, lighting environment, and tolerance for visible handling marks.
A smooth aluminum substrate supports a cleaner reflected image. Before painting, the strip is degreased, chemically treated, and coated with a conversion layer or suitable pretreatment system. This stage is critical because it strengthens paint adhesion and helps resist under-film corrosion. Primer is then applied, followed by the selected color topcoat. A protective back coat may be used on the reverse side when the strip will be exposed to humidity or contact with other materials.
Good gloss colors include white, black, silver, gold, red, dark red, green, yellow, grey, blue, and custom RAL or Pantone shades. White and black produce a strong modern contrast, while gold and deep red are frequently selected for decorative trims, signage, and architectural details. Color consistency between coils is controlled through paint batch management, coating thickness control, and color-difference testing.
Typical Product Parameters
The following values represent common commercial ranges. Final specifications should be aligned with the forming process and end-use environment.
| Property | Typical Range or Requirement |
|---|---|
| Base metal alloy | AA 1050, 1060, 1100, 3003, 3105, 5052 |
| Temper | O, H14, H16, H18, H24, H26 |
| Thickness | 0.20 mm to 2.00 mm |
| Width | 10 mm to 1,600 mm |
| Coil inner diameter | 150 mm, 300 mm, 405 mm, 505 mm, or customized |
| Surface finish | High gloss, medium gloss, satin gloss, matte gloss |
| Topcoat thickness | Usually 15 to 25 microns for PE; 20 to 30 microns for PVDF |
| Primer thickness | Usually 5 to 8 microns |
| Back coat thickness | Usually 5 to 10 microns |
| Color tolerance | Commonly Delta E <= 1.0 to 2.0, subject to agreement |
| Pencil hardness | Typically 2H or higher, depending on coating system |
| Adhesion | Cross-hatch adhesion commonly Grade 0 or Grade 1 |
For indoor decorative parts, a flexible PE paint system is often practical and economical. A properly selected PE Coated Aluminum Strip offers bright colors, favorable formability, and reliable performance in controlled indoor conditions. For exterior facades, rain-exposed trims, solar equipment parts, or coastal projects, PVDF is generally preferred because it provides better resistance to ultraviolet exposure, chalking, and color fading.
Alloy and Temper: The Foundation Under the Paint
Alloy 1050 and 1060 are widely used where excellent workability, thermal conductivity, and a smooth painted appearance are desired. Their relatively high aluminum content makes them suitable for lampshades, channel letters, heat-related accessories, and light-duty decorative components.
Alloy 1100 is another commercially pure aluminum grade with good ductility and corrosion resistance. It performs well in applications that require rolling, stamping, shallow drawing, or gentle bends after painting.
Alloy 3003 contains manganese, which raises strength while preserving useful formability. It is a dependable choice for rainwater systems, insulation cladding, appliance panels, and architectural trim. Alloy 3105 is common in building products because it provides a balance of strength, coating compatibility, and corrosion resistance.
Alloy 5052 contains magnesium and offers higher mechanical strength and strong corrosion resistance. It is often selected for demanding humid environments, transportation parts, marine-adjacent components, and formed profiles. When choosing 5052, the coating system must remain flexible enough for the intended bending operation.
Temper determines how readily the strip can be formed. O temper is soft and suitable for deep drawing or tight bends. H14 and H24 provide moderate strength with good processing capability. H16 and H18 provide greater rigidity for flat panels and roll-formed components, but they require greater attention to bending radius and paint flexibility. H24 is frequently favored when a balance between strength and post-paint fabrication is needed.
Chemical Composition of Common Aluminum Strip Alloys
Values are typical maximum percentages by weight unless a range is stated. Specifications may vary slightly by applicable standard and customer agreement.
| Alloy | Al | Si | Fe | Cu | Mn | Mg | Zn | Other Elements |
|---|---|---|---|---|---|---|---|---|
| 1050 | >= 99.50 | 0.25 | 0.40 | 0.05 | 0.05 | 0.05 | 0.05 | 0.03 each, 0.10 total |
| 1060 | >= 99.60 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | 0.05 | 0.03 each, 0.10 total |
| 1100 | >= 99.00 | Si + Fe 0.95 | Si + Fe 0.95 | 0.05 to 0.20 | 0.05 | - | 0.10 | 0.05 each, 0.15 total |
| 3003 | Balance | 0.60 | 0.70 | 0.05 to 0.20 | 1.0 to 1.5 | - | 0.10 | 0.05 each, 0.15 total |
| 3105 | Balance | 0.60 | 0.70 | 0.30 | 0.30 to 0.80 | 0.20 to 0.80 | 0.40 | 0.05 each, 0.15 total |
| 5052 | Balance | 0.25 | 0.40 | 0.10 | 0.10 | 2.2 to 2.8 | 0.10 | Cr 0.15 to 0.35 |
Coating Systems and Environmental Conditions
PE coating is a polyester-based solution valued for color richness, gloss retention in indoor use, processability, and cost control. It is appropriate for interior ceiling systems, appliance trims, furniture accessories, advertising structures, and packaging-related applications where severe ultraviolet exposure is limited.
PVDF coating contains fluoropolymer resin and is designed for demanding outdoor conditions. It offers excellent resistance to UV radiation, humidity, industrial atmospheres, and long-term color change. A PVDF Coated Aluminum Strip is especially suitable for exterior wall trims, roofing accessories, curtain wall components, and projects exposed to intense sunlight.
For high-gloss finishes, protective film is strongly recommended. Transparent PE film helps prevent abrasion during slitting, stamping, roll forming, transportation, and installation. Film type and adhesion level should match the storage period and processing temperature so that adhesive residue does not remain on the painted surface.
Applicable Standards and Quality Checks
Painted aluminum strip can be produced with reference to ASTM B209 for aluminum sheet and strip, EN 485 for tolerances and mechanical properties, EN 573 for alloy designations and chemical composition, and GB/T 3880 for aluminum and aluminum alloy plates, sheets, and strips. Coil coating quality can also be evaluated using relevant test methods for adhesion, coating thickness, impact resistance, pencil hardness, gloss, color variation, and salt spray resistance.
Inspection should include thickness and width measurement, coil edge condition, color comparison under controlled lighting, gloss testing, coating thickness verification, T-bend testing, cross-hatch adhesion testing, and visual review for pinholes, streaks, dents, scratches, or roller marks. A glossy surface reveals small defects more readily than a matte surface, so packaging and handling discipline are part of product quality.
Selecting the Right Painted Strip
Choose the alloy according to strength and corrosion demand, then select temper according to the bending or stamping operation. Choose PE for economical indoor color applications and PVDF for long-term outdoor exposure. Specify gloss level early, especially for black, dark red, gold, and other colors that can show surface variation under strong lighting.
Good gloss colors painted aluminum strip delivers its best value when appearance and engineering work together. With a stable substrate, controlled coating structure, suitable temper, and careful protection, the strip can retain a bright, consistent finish from coil processing to final installation.
