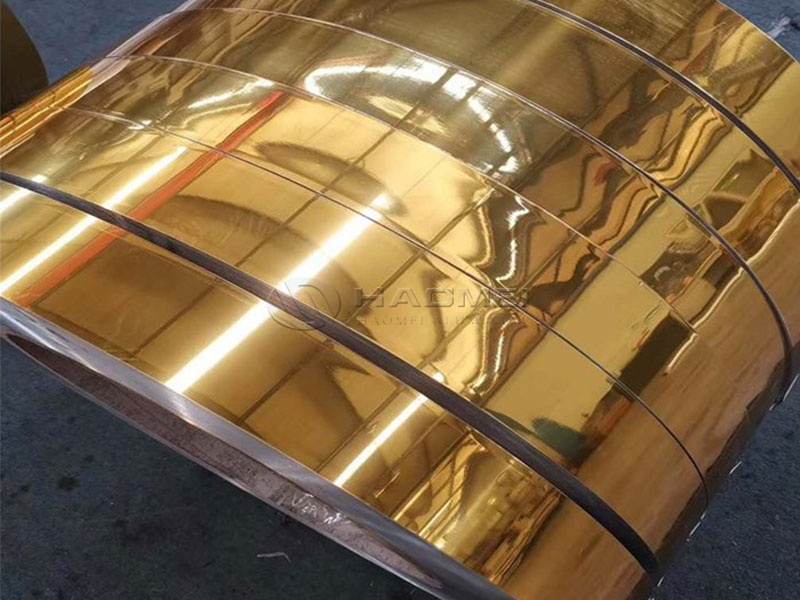

Edge Coil Color Aluminium Strips
Edge coil color aluminium strips combine the lightweight strength of aluminium with a factory-applied decorative coating and accurately slit edges. Supplied in narrow coils, these strips are designed for manufacturers that require consistent color, smooth forming behavior, clean edges, and dependable coil-to-coil quality.
They are widely used where exposed metal must look refined while resisting moisture, corrosion, handling marks, and daily environmental wear. From decorative trim and ceiling systems to appliance panels, shutters, signage, and insulated panel accessories, edge coil color aluminium strips offer a practical balance of appearance, processability, and long service life.
Product Characteristics
The product begins with an aluminium coil selected for its forming performance and corrosion resistance. The coil is cleaned, chemically pretreated, coated, cured in a controlled oven, and slit into the required strip width. Edge quality is carefully managed during slitting to reduce burrs, waviness, telescoping, and deformation during further roll forming or stamping.
Color-coated strips can be supplied with solid colors, metallic finishes, woodgrain patterns, marble patterns, brushed effects, or custom RAL and Pantone colors. The painted surface is protected by a removable film when required for fabrication lines or visible architectural applications.
| Feature | Performance Value |
|---|---|
| Base material | Aluminium alloy coil, commonly 1000, 3003, 3105, or 5052 series |
| Strip condition | Slit edge coil, mill edge coil, deburred edge available |
| Surface finish | PE, SMP, HDP, PVDF, polyester, textured, woodgrain, or custom finish |
| Edge quality | Controlled burr height and stable strip profile for roll forming |
| Weight advantage | Approximately one-third the density of steel |
| Corrosion resistance | Naturally corrosion resistant, enhanced by pretreatment and coating |
| Fabrication suitability | Bending, profiling, punching, stamping, shearing, and hemming |
| Color consistency | Controlled coating process with batch-based color matching |
For indoor decorative products, PE Coated Aluminum Strip is often selected for its economical finish, smooth appearance, and good flexibility. For exterior cladding, high-UV zones, and long-term architectural exposure, a fluorocarbon coating provides stronger weathering stability.
Typical Technical Specifications
Dimensions, coating systems, and coil weights can be tailored to match production equipment. Narrow strips are especially effective for continuous roll-forming operations because they reduce cutting waste and improve material handling efficiency.
| Parameter | Common Range | Notes |
|---|---|---|
| Aluminium thickness | 0.20-1.50 mm | Thinner gauges suit trim and decorative profiles; heavier gauges suit structural skins |
| Strip width | 20-1,600 mm | Slit width tolerance is agreed according to end-use requirements |
| Coil inner diameter | 150 mm, 300 mm, 405 mm, 508 mm | Selected to suit decoilers and production lines |
| Coil outer diameter | Up to 1,800 mm | Depends on thickness, width, and safe handling limits |
| Coil weight | 0.5-5.0 tonnes | Small coils and jumbo coils are both available |
| Front coating thickness | 15-35 μm | Higher coating build may be used for demanding environments |
| Back coating thickness | 5-10 μm | Usually protective wash coat or service coating |
| Gloss level | 10-90 GU | Matte, semi-gloss, and high-gloss finishes available |
| Protective film | 30-80 μm | Optional for visible faces and fabrication protection |
| Width tolerance | Typically ±0.10-0.30 mm | Determined by thickness and slit width |
| Camber | Controlled to application requirement | Important for long trim and roll-formed sections |
Alloy Chemistry
Alloy selection affects strength, formability, corrosion behavior, and surface appearance after coating. AA 3003 and AA 3105 are common choices for painted strip because they provide a reliable blend of strength and forming response. AA 1050 is suitable where high formability is preferred, while AA 5052 is considered for higher strength and more demanding service environments.
The table presents typical composition limits for AA 3003 aluminium alloy. Actual values should be confirmed against the applicable material certificate and governing standard.
| Element | Typical Composition for AA 3003, % by Weight |
|---|---|
| Aluminium | Balance |
| Manganese, Mn | 1.0-1.5 |
| Copper, Cu | 0.05-0.20 |
| Iron, Fe | Maximum 0.70 |
| Silicon, Si | Maximum 0.60 |
| Zinc, Zn | Maximum 0.10 |
| Magnesium, Mg | Maximum 0.10 |
| Other elements, total | Maximum 0.15 |
Mechanical and Coating Performance
The mechanical condition is chosen according to the manufacturing method. Softer tempers allow deeper bending and shaping. H24 or H26 tempers provide increased rigidity for panels, shutters, and trim profiles while maintaining useful fabrication performance.
| Property | Typical Value or Requirement | Practical Benefit |
|---|---|---|
| Temper | H14, H16, H24, H26, H32 | Matches bending and stiffness requirements |
| Tensile strength | 110-180 MPa | Supports stable finished profiles |
| Yield strength | 80-165 MPa | Helps maintain shape after forming |
| Elongation | 3-15% | Supports bending without surface cracking |
| Pencil hardness | HB-H | Resists light surface abrasion |
| T-bend performance | 0T-3T, coating dependent | Indicates coating flexibility during forming |
| Adhesion | No peeling after cross-hatch test | Supports reliable downstream fabrication |
| Impact resistance | No cracking under specified test conditions | Helps withstand handling and installation |
| Salt spray resistance | 500-1,000+ hours, coating dependent | Suitable for humid and mildly corrosive settings |
| Color difference | Controlled by agreed sample standard | Supports visual consistency across installations |
Applications Across Fabrication Sectors
Edge coil color aluminium strips are valued in continuous manufacturing environments because the strip can be fed directly into roll-forming, bending, punching, and cut-to-length machinery. Accurate width and controlled edge condition help minimize production interruptions and reduce finishing work.
| Application Area | Typical Product Use | Preferred Performance Focus |
|---|---|---|
| Building trim | Fascia, soffit, flashing, gutter trim, decorative profiles | Weather resistance and color retention |
| Ceiling systems | Grid components, edge bands, suspended ceiling accessories | Flatness and scratch resistance |
| Shutters and blinds | Roller shutter slats, venetian blind components, guide rails | Formability and coating adhesion |
| Appliance production | Panel edging, refrigerator trim, cooker hoods, housing parts | Smooth finish and fingerprint control |
| Signage | Letter returns, sign frames, display borders | Bright color and clean bending |
| Transportation interiors | Caravan trim, bus interior panels, trailer accessories | Low weight and vibration resistance |
| Insulated panels | Edge closures, decorative strips, protective trims | Corrosion protection and dimensional consistency |
| Furniture and retail fixtures | Shelf edging, cabinet trim, display profiles | Decorative appearance and easy cleaning |
For projects requiring a broad selection of decorative finishes and coating systems, Color Coated Aluminum Strip can be specified with the alloy, temper, film protection, and slit width suited to the finished component.
Benefits for Customers
Edge coil color aluminium strips reduce secondary painting work, shorten fabrication cycles, and provide a cleaner finished appearance straight from the production line. The pre-painted surface eliminates the need for wet coating after profiling in many applications, helping reduce solvent use, energy consumption, and handling time.
The narrow-coil format also supports better material utilization. Rather than purchasing wide sheet and trimming excess material, manufacturers can order strips close to the required developed width. This can lower scrap rates, simplify inventory, and improve line speed.
Aluminium remains easy to recycle without losing its fundamental material value. When combined with a durable coating system and an application-appropriate alloy, edge coil color aluminium strip delivers a long-lasting, visually consistent solution for modern architectural, industrial, and consumer-product manufacturing.
Ordering Considerations
To ensure the strip performs as intended, purchase specifications should identify the alloy, temper, thickness, width, coating type, color reference, gloss level, protective film requirement, coil inner diameter, maximum coil weight, and acceptable edge condition. For exterior use, the coating system should be selected according to UV exposure, humidity, airborne salts, and expected service duration.
A well-matched edge coil color aluminium strip gives fabricators a dependable feedstock that forms cleanly, protects reliably, and presents a polished appearance in the final product.
