Color Coated Aluminum Strip Tape Strap
Color coated aluminum strip tape strap is a pre-painted aluminum product designed for applications requiring a clean appearance, controlled flexibility, corrosion resistance, and low handling weight. It combines an aluminum alloy substrate with a factory-applied organic coating, creating a strip material that can be slit, formed, wrapped, stamped, or converted into decorative straps and binding tapes.
Compared with bare metal straps, color coated aluminum strip offers a finished surface from the start. This reduces secondary painting work, improves visual consistency, and helps protect the aluminum from moisture, dust, and light industrial exposure. It is widely selected for decorative edging, cable identification, packaging bands, HVAC finishing, architectural accessories, appliance trim, and light-duty bundling.
Product Profile
The strip is manufactured from rolled aluminum coil, cleaned and chemically pretreated, then coated with PE, polyester, SMP, or PVDF paint systems. After curing, the coated coil is slit into narrow widths suitable for tape strap production. The result is a smooth, colored aluminum strip with stable dimensions and dependable bend performance.
Color selection can support both practical identification and decorative design. White and grey strips are often used for clean architectural finishing, while black, red, yellow, green, and purple can distinguish cable routes, packaged products, storage zones, or branded components.

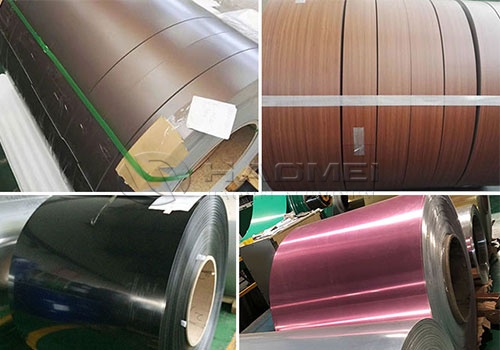

For projects requiring standard painted coil in multiple widths, Color Coated Aluminum Strip provides a flexible material base for further slitting and fabrication.
Material and Chemical Composition
Alloy selection depends on the required forming performance, strength, and service environment. Alloy 1050 provides high ductility for light forming. Alloys 3003 and 3105 offer improved strength and are commonly used for coated strip, trim, and strapping applications.
| Alloy | Al | Mn | Mg | Si | Fe | Cu | Typical Use |
|---|---|---|---|---|---|---|---|
| 1050 | ≥99.50% | ≤0.05% | ≤0.05% | ≤0.25% | ≤0.40% | ≤0.05% | Soft decorative tape and light wrapping |
| 3003 | Balance | 1.0-1.5% | - | ≤0.60% | ≤0.70% | 0.05-0.20% | General coated strip and formed trim |
| 3105 | Balance | 0.30-0.80% | 0.20-0.80% | ≤0.60% | ≤0.70% | ≤0.30% | Durable architectural and industrial strip |
Chemical values are typical ranges and may be adjusted according to the selected standard, alloy temper, and order specification.
Technical Specifications
The product can be supplied in coils, narrow slit rolls, or cut lengths. Width, thickness, coating color, surface finish, and coil dimensions can be matched to the converting equipment and final application.
| Parameter | Typical Range | Notes |
|---|---|---|
| Base alloy | 1050, 1060, 3003, 3105 | Selected according to formability and strength needs |
| Temper | O, H14, H16, H18, H24 | Softer tempers suit bending; harder tempers suit rigid straps |
| Thickness | 0.15-1.20 mm | Common tape strap thickness: 0.20-0.60 mm |
| Width | 10-1,500 mm | Narrow slit widths available for straps and edging |
| Coil inner diameter | 150 mm, 300 mm, 405 mm, 508 mm | Chosen for customer equipment |
| Coil outer diameter | Up to 1,600 mm | Subject to thickness and coil weight |
| Paint system | PE, polyester, SMP, PVDF | Depends on weathering and chemical exposure |
| Coating thickness | 15-35 μm | Higher thickness available for demanding exposure |
| Surface finish | Glossy, matte, embossed, smooth | Protective film optional |
| Standard colors | White, black, red, yellow, green, grey, purple | Custom RAL or sample-matched colors available |
Mechanical and Coating Performance
The aluminum substrate supplies practical strength without the weight penalty of steel. The paint layer protects the surface and gives the strap a finished color that remains stable during normal bending and handling. Proper alloy-temper selection is important: a softer strip improves wrap-around performance, while a harder strip improves shape retention and edge stiffness.
| Performance Item | Typical Value | Customer Benefit |
|---|---|---|
| Tensile strength, 1050 O | 60-100 MPa | Easy bending and forming |
| Tensile strength, 3003 H14 | 145-185 MPa | Balanced strength for straps and trim |
| Elongation | 3-25% | Supports folding, profiling, and wrapping |
| Pencil hardness | 2H-4H | Helps resist handling scratches |
| T-bend | 0T-3T | Indicates coating flexibility during forming |
| Adhesion | 0 grade, cross-hatch test | Coating remains bonded to substrate |
| Impact resistance | ≥50 kg·cm | Helps reduce coating cracking in transit |
| Salt spray resistance | 240-1,000 hours | Depends on coating system and pretreatment |
| Service temperature | -40°C to 80°C for standard PE | Higher-performance systems available |
PE-coated material is a practical choice for indoor products, packaging, appliance trim, and general decorative bands. For these applications, PE Coated Aluminum Strip offers economical color retention, smooth processing, and reliable adhesion.
Applications and Use Cases
Color coated aluminum strip tape strap serves both functional and visual roles. Its narrow-width format makes it easy to process on slitting, stamping, roll-forming, wrapping, and automated banding lines.
| Application Area | Typical Function | Preferred Product Characteristics |
|---|---|---|
| Decorative packaging | Product binding, gift box edge banding, premium wrapping | Bright color, smooth surface, soft temper |
| Cable and pipe marking | Color-coded identification straps | Strong coating adhesion, visible colors |
| HVAC and insulation | Duct edge finishing and insulation binding | Corrosion resistance, flexible forming |
| Building decoration | Ceiling trim, shutter accessories, fascia details | Weather-resistant coating, stable color |
| Appliance production | Edge strips, panels, and decorative accents | Scratch resistance, uniform gloss |
| Furniture and shelving | Protective trim and colored edging | Clean cut edges, consistent width |
| Light industrial bundling | Non-ferrous strapping for coils, profiles, and cartons | Higher tensile strength, controlled burrs |
| Signage and display | Colored borders, frames, and panel details | Flatness, paint uniformity, easy fabrication |
Practical Benefits for Processing and Use
A painted aluminum strap can eliminate the separate painting stage that is often needed for bare aluminum or steel bands. This improves production flow and lowers the risk of color variation between batches. The lightweight material also reduces coil handling effort and can lower transportation costs.
The coating acts as a barrier between the aluminum surface and common atmospheric contaminants. For indoor or sheltered service, PE and polyester coatings provide an economical solution. For exterior trim exposed to strong sunlight, humidity, or pollution, a more durable coating system should be specified.
Aluminum naturally forms a protective oxide layer, while the coating provides an additional decorative and protective barrier. This combination gives the strip a long service life when the correct alloy, coating type, edge condition, and thickness are selected.
Selection Considerations
Choose the alloy and temper according to the forming radius and strap tension. Soft 1050 or 1060 material is suitable where the strip must wrap tightly around a product. 3003 and 3105 are better suited to applications requiring higher rigidity, improved dent resistance, or stable profile shape.
Specify the coating based on the environment rather than color alone. Indoor packaging and decorative trim may use PE coating, while external architectural components benefit from stronger weathering resistance. Customers should also confirm strip width tolerance, burr direction, coil orientation, protective film needs, and permissible color difference before production.
Color coated aluminum strip tape strap delivers a balanced combination of visual appeal, corrosion resistance, formability, and efficient processing. It is a practical material for manufacturers seeking a colored metal strap that performs reliably while enhancing the finished appearance of their products.
