Bright Finish Aluminum Strip Coil

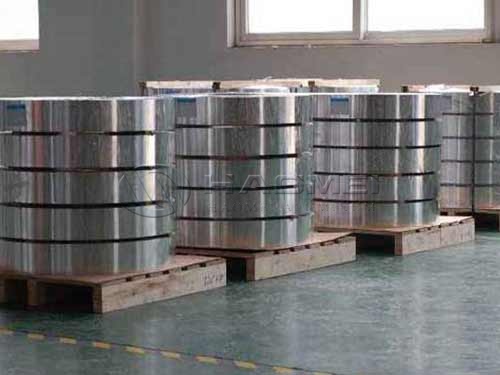

Bright finish aluminum strip coil is a precision-rolled aluminum product with a clean, reflective surface designed for applications where appearance, corrosion resistance, formability, and light weight matter. It is supplied in slit coils with controlled width, thickness, edge condition, and surface quality. Depending on the alloy and finishing route, the surface can range from bright mill finish to a highly polished decorative appearance.
This material combines aluminum's low density with efficient fabrication performance. It is commonly selected for lighting components, appliance trims, decorative profiles, packaging, heat-reflective parts, cable shielding, building accessories, and stamped products. A bright surface also improves visual inspection during production, helping processors identify scratches, stains, rolling marks, or handling damage before parts move into forming or assembly.
Surface Function and Performance Value
The bright finish is achieved through careful rolling, cleaning, tension control, and, when required, mechanical polishing or bright annealing. The result is a smooth metallic appearance with good consistency from coil to coil. It is not merely decorative: the finish can support light reflection, reduce preparation work before coating, and provide an attractive base for anodizing, lamination, printing, or protective film application.
| Function | Practical Value |
|---|---|
| Decorative appearance | Produces a clean metallic look for visible trims, lamp components, panels, and nameplates |
| Reflectivity | Supports light reflectors, luminaires, heat shields, and optical-adjacent uses |
| Formability | Allows bending, rolling, punching, stamping, and deep drawing when suitable temper is selected |
| Corrosion resistance | Aluminum naturally forms a protective oxide film for long-term service in normal environments |
| Low weight | Reduces component mass compared with steel or copper alternatives |
| Conductivity | High-purity grades provide useful electrical and thermal conductivity |
| Coating base | Accepts anodizing, painting, printing, adhesive lamination, and protective film |
Common Alloys and Temper Conditions
Alloy selection should match the required balance of brightness, strength, conductivity, corrosion resistance, and forming behavior. The 1xxx series is favored for high aluminum content and excellent workability. The 3xxx series provides greater strength through manganese additions. The 5xxx series is suitable where corrosion resistance and medium strength are important, while 8xxx grades are widely used in packaging and selected formed components.
| Alloy | Typical Temper | Main Characteristics | Typical Uses |
|---|---|---|---|
| 1050 | O, H14, H16, H18 | High purity, excellent formability and conductivity | Reflectors, lamp caps, decorative strips, cable shielding |
| 1060 | O, H14, H24 | Good brightness, ductility, thermal conductivity | Appliance parts, transformer strip, signage |
| 1070 | O, H14 | Very high aluminum content and conductivity | Electrical and reflective applications |
| 1100 | O, H14, H24 | Strong corrosion resistance, easy forming | Cookware trims, decorative sheet-metal parts |
| 3003 | O, H14, H24 | Better strength with good forming performance | Roofing accessories, heat exchangers, stamped parts |
| 3004 | H14, H24, H26 | Higher strength than 3003 | Can components, panels, formed housings |
| 5052 | H32, H34 | Excellent marine and industrial corrosion resistance | Equipment covers, transport and marine-related components |
| 8011 | O, H14, H18 | Good processing performance and cost efficiency | Packaging, closures, lighting and insulation parts |
For applications requiring a balance of bright appearance and reliable strength, 3003 Aluminum Strip is often chosen for fabricated decorative and industrial components.
Chemical Composition
Chemical composition follows the applicable alloy specification and is normally verified by spectrometric analysis. Values shown are typical maximum limits in percent by mass unless a range is stated. Aluminum forms the balance.
| Alloy | Si | Fe | Cu | Mn | Mg | Zn | Ti | Al |
|---|---|---|---|---|---|---|---|---|
| 1050 | 0.25 | 0.40 | 0.05 | 0.05 | 0.05 | 0.05 | 0.03 | 99.50 min |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | 0.05 | 0.03 | 99.60 min |
| 1100 | Si + Fe 0.95 max | - | 0.05-0.20 | 0.05 | - | 0.10 | - | 99.00 min |
| 3003 | 0.60 | 0.70 | 0.05-0.20 | 1.0-1.5 | - | 0.10 | - | Balance |
| 5052 | 0.25 | 0.40 | 0.10 | 0.10 | 2.2-2.8 | 0.10 | - | Balance |
| 8011 | 0.50-0.90 | 0.60-1.0 | 0.10 | 0.20 | 0.05 | 0.10 | 0.08 | Balance |
Technical Specifications
Bright finish aluminum strip coil can be produced to standard stock ranges or customer-defined slit widths and coil weights. Exact tolerances depend on thickness, alloy, temper, processing route, and governing standard.
| Parameter | Typical Supply Range | Notes |
|---|---|---|
| Thickness | 0.10-3.00 mm | Thinner gauges are available for specialized applications |
| Width | 10-1,600 mm | Narrow slit coil is common for stamping and roll forming |
| Coil inner diameter | 150 mm, 300 mm, 400 mm, 500 mm | Selected to suit customer uncoiling equipment |
| Coil outer diameter | Up to approximately 2,000 mm | Controlled by transport and handling limits |
| Coil weight | 100-5,000 kg | Available as light coils or jumbo coils |
| Surface | Bright mill finish, polished, brushed, coated | Protective film available for visible surfaces |
| Edge | Mill edge, slit edge, deburred edge | Burr control is important for stamping and winding |
| Flatness | Commercial or precision-controlled | Defined by application requirements |
| Direction | Rolled coil, slit strip | Longitudinal grain direction should be considered in forming |
Mechanical Properties
Mechanical values vary with alloy, thickness, and temper. The figures serve as common reference ranges for product planning; certified inspection data should govern final purchasing and engineering decisions.
| Alloy and Temper | Tensile Strength, MPa | Yield Strength, MPa | Elongation, % | Forming Character |
|---|---|---|---|---|
| 1050-O | 60-95 | 20-35 | 25-35 | Excellent for deep drawing and bending |
| 1050-H14 | 85-115 | 65 min | 5-12 | Suitable for general stamping |
| 1060-H24 | 95-135 | 75 min | 5-10 | Moderate strength with workable ductility |
| 3003-O | 95-130 | 35 min | 20-30 | Strong option for drawn and shaped parts |
| 3003-H14 | 120-160 | 95 min | 4-10 | Good for roll forming and moderate stamping |
| 5052-H32 | 170-215 | 130 min | 7-15 | Good strength and corrosion resistance |
| 8011-H14 | 110-150 | 85 min | 4-10 | Useful for formed packaging and general parts |
Standards, Inspection, and Processing Control
Bright finish aluminum strip coil may be manufactured in accordance with EN 485, ASTM B209, ASTM B221-related dimensional practices where applicable, GB/T 3880, JIS H4000, or customer-specific technical agreements. Material documentation can include alloy designation, temper, dimensions, coil number, net weight, mechanical results, chemical analysis, and surface inspection status.
| Inspection Item | Control Focus |
|---|---|
| Surface quality | No unacceptable scratches, oxidation spots, oil stains, dents, edge cracks, or roller marks |
| Thickness | Measured across strip width and along coil length according to tolerance agreement |
| Width and edge | Slit-width accuracy, burr height, camber, and edge cleanliness |
| Mechanical properties | Tensile strength, yield strength, and elongation by selected standard |
| Chemical analysis | Alloy conformity through melt chemistry verification |
| Coil condition | Uniform winding, protected edges, stable coil shape, and secure packaging |
Processing should protect the bright surface from abrasion. Clean rollers, non-marking separators, proper coil handling, and protective film are particularly important for exposed decorative components. For bending or stamping, select an O or H24 temper when ductility is needed; choose H14, H16, H18, or H32 where added rigidity is more important.
Applications for Bright Finish Strip
| Industry | Typical Component | Recommended Material Direction |
|---|---|---|
| Lighting | Lamp caps, reflectors, trim rings, LED housings | 1050, 1060, 1100 in bright finish |
| Appliances | Decorative bands, panels, handles, internal reflectors | 1050, 1100, 3003 |
| Construction | Ceiling trims, edge profiles, flashing details | 3003, 5052, coated bright strip |
| Electrical | Transformer winding, cable shielding, conductive connectors | 1050, 1060, 1070 |
| Packaging | Closure shells, decorative wraps, sealing components | 8011, 3004 |
| Automotive and transport | Trim elements, lightweight formed covers | 3003, 5052 |
| General fabrication | Stamped tags, nameplates, rolled sections, metal crafts | 1050, 1100, 3003 |
Bright finish aluminum strip coil delivers an effective combination of visual quality and production efficiency. Specifying the correct alloy, temper, dimensional tolerance, edge condition, and surface protection helps ensure that each coil performs consistently from uncoiling through final assembly.
