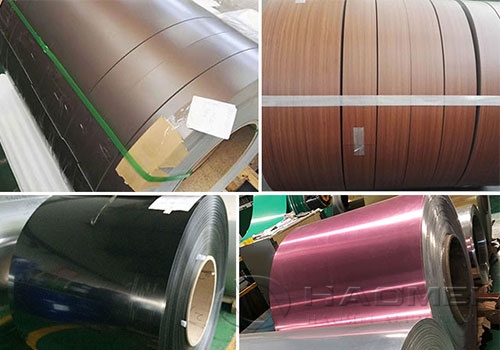

Prepainted Color Coated Aluminum Strip Coil

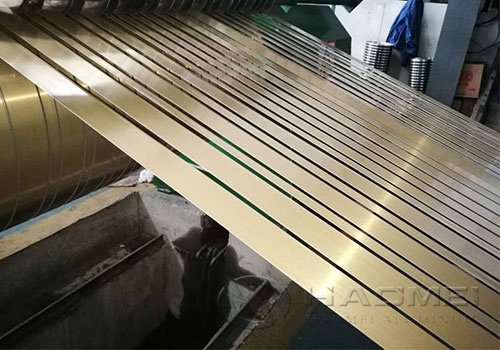

Prepainted color coated aluminum strip coil is a lightweight metal material made by cleaning, pretreating, coating, baking, slitting, and coiling aluminum strip. It combines the formability of aluminum with a durable decorative coating, so manufacturers can use it directly without secondary painting. The product is widely selected for roofing accessories, ceiling systems, blinds, signage, lighting parts, home appliances, packaging components, and industrial trim.
For buyers comparing surface finishes, paint systems, and strip dimensions, Color Coated Aluminum Strip offers a practical balance of corrosion resistance, stable color, easy processing, and attractive appearance.
What the Product Does
The main function of prepainted aluminum strip coil is to protect and decorate aluminum while keeping the strip ready for continuous forming. A properly selected coating system can resist ultraviolet radiation, humidity, salt spray, cleaning agents, and outdoor temperature changes. At the same time, the aluminum base provides low density, good bending ability, thermal conductivity, recyclability, and resistance to rust.
| Function | Customer Value | Typical Result |
|---|---|---|
| Surface decoration | Consistent color and gloss | Stable appearance for visible parts |
| Corrosion protection | Barrier against moisture and pollutants | Longer service life than bare aluminum |
| Processing efficiency | Supplied in slit coils | Suitable for roll forming, stamping, bending, and lamination |
| Weight reduction | Lower density than steel | Easier installation and reduced structural load |
| Weather resistance | PE, HDP, PVDF, or FEVE coating options | Indoor to severe outdoor performance |
| Cost control | No need for post-painting | Lower labor, paint loss, and curing energy |
Product Construction
A typical prepainted color coated aluminum strip coil uses an aluminum alloy substrate, chemical conversion layer, primer, topcoat, and optional back coat. The front coating determines color, gloss, outdoor durability, and surface texture. The back coating improves adhesion, anti-corrosion performance, and compatibility with adhesives or foam layers.
| Layer | Common Material | Main Purpose | Typical Thickness |
|---|---|---|---|
| Topcoat | PE, HDP, PVDF, FEVE, epoxy modified resin | Color, weather resistance, gloss control | 10-25 µm |
| Primer | Epoxy, polyurethane, polyester primer | Adhesion and corrosion resistance | 3-8 µm |
| Pretreatment film | Chrome-free or chromate conversion | Bonding and anti-oxidation | 20-100 mg/m² |
| Aluminum substrate | 1xxx, 3xxx, 5xxx alloy | Strength and formability | 0.15-3.00 mm |
| Back coat | Epoxy or polyester | Protection and bonding support | 5-15 µm |
Main Technical Specifications
Specifications can be customized according to production line capability and final application. Tight tolerance control is important for automatic feeding, roll forming, and high-speed stamping.
| Item | Common Range | Custom Notes |
|---|---|---|
| Thickness | 0.15-3.00 mm | Thin strip for blinds and closures, thicker strip for construction trim |
| Width | 10-1600 mm | Slitting available for narrow strip coil |
| Coil ID | 150 mm, 300 mm, 405 mm, 508 mm | Selected according to uncoiler design |
| Coil OD | Up to 1800 mm | Depends on weight and transport limits |
| Coil weight | 0.5-8 tons | Smaller coils available for easy handling |
| Paint thickness | 15-35 µm total front coating | Higher film for outdoor exposure |
| Back coating | 5-15 µm | Service or primer coating available |
| Gloss | 10-90 GU | Matte, semi-gloss, high-gloss finishes |
| Color system | RAL, Pantone, custom sample | Color matching available |
| Surface | Smooth, embossed, brushed, wood grain, stone grain | Depends on coating and printing process |
Alloy and Temper Selection
Different alloys and tempers create different strength, bending behavior, and corrosion resistance. For deep forming and tight bending, softer tempers are preferred. For panels, trims, and structural decorative parts, harder tempers provide better shape stability.
| Alloy | Temper | Characteristics | Frequent Uses |
|---|---|---|---|
| 1050 | O, H12, H14, H24 | High purity, excellent workability, good conductivity | Lamp parts, reflectors, decorative strips |
| 1060 | O, H14, H16, H24 | Soft, ductile, easy to form | Blinds, caps, cable wrap, general trim |
| 1100 | O, H14, H24 | Good corrosion resistance and formability | Heat insulation, packaging, indoor decoration |
| 3003 | H14, H16, H24, H26 | Manganese alloy, better strength than 1xxx | Roofing accessories, gutters, ceiling strips |
| 3004 | H24, H26, H28 | Higher strength, good coating performance | Exterior cladding, shutters, curtain wall trim |
| 3105 | H14, H24, H26 | Good coated surface stability | Building panels, rainwater systems, signs |
| 5052 | H32, H34 | Magnesium alloy, strong corrosion resistance | Marine trim, transport parts, demanding outdoor use |
Chemical Composition Reference
Chemical composition should comply with the relevant alloy standard and confirmed by mill test certificate. The following values are typical mass percentage limits used in commercial aluminum strip production.
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Al |
|---|---|---|---|---|---|---|---|---|---|
| 1050 | ≤0.25 | ≤0.40 | ≤0.05 | ≤0.05 | ≤0.05 | - | ≤0.05 | ≤0.03 | ≥99.50 |
| 1060 | ≤0.25 | ≤0.35 | ≤0.05 | ≤0.03 | ≤0.03 | - | ≤0.05 | ≤0.03 | ≥99.60 |
| 1100 | Si+Fe ≤0.95 | - | 0.05-0.20 | ≤0.05 | - | - | ≤0.10 | - | ≥99.00 |
| 3003 | ≤0.60 | ≤0.70 | 0.05-0.20 | 1.00-1.50 | - | - | ≤0.10 | - | Balance |
| 3004 | ≤0.30 | ≤0.70 | ≤0.25 | 1.00-1.50 | 0.80-1.30 | - | ≤0.25 | - | Balance |
| 3105 | ≤0.60 | ≤0.70 | ≤0.30 | 0.30-0.80 | 0.20-0.80 | ≤0.20 | ≤0.40 | ≤0.10 | Balance |
| 5052 | ≤0.25 | ≤0.40 | ≤0.10 | ≤0.10 | 2.20-2.80 | 0.15-0.35 | ≤0.10 | - | Balance |
Coating Systems and Performance
Paint selection should match the service environment. PE coating is economical and suitable for indoor or mild outdoor use. HDP improves weathering. PVDF is favored for high-end exterior use because of excellent UV resistance and long color retention. FEVE offers high gloss and strong weather durability.
| Coating Type | Resin Base | Main Strength | Suggested Environment | Typical Warranty Target |
|---|---|---|---|---|
| PE | Polyester | Good flexibility and economical cost | Interior, mild exterior | 5-8 years |
| HDP | High-durability polyester | Better UV and chalking resistance | General exterior | 8-12 years |
| PVDF | Polyvinylidene fluoride | Excellent weathering and color retention | Coastal, industrial, high UV exposure | 15-25 years |
| FEVE | Fluoroethylene vinyl ether | High gloss, strong weather durability | Premium architectural decoration | 15-25 years |
| Epoxy back coat | Epoxy resin | Adhesion and corrosion resistance | Reverse side, bonding surface | Depends on system |
Implementation Standards
Manufacturing and inspection can follow international or regional standards depending on the destination market and buyer requirements. Standards cover alloy composition, dimensional tolerance, coating quality, mechanical properties, and test methods.
| Category | Common Standard | Scope |
|---|---|---|
| Aluminum alloy composition | ASTM B209, EN 573, GB/T 3190 | Chemical composition and alloy designation |
| Sheet and strip tolerance | ASTM B209, EN 485, GB/T 3880 | Thickness, width, flatness, mechanical properties |
| Coil coating products | EN 1396, GB/T 17748 | Prepainted aluminum sheet and strip requirements |
| Paint adhesion | ASTM D3359, ISO 2409 | Cross-cut adhesion testing |
| Pencil hardness | ASTM D3363, GB/T 6739 | Coating hardness evaluation |
| Impact resistance | ASTM D2794 | Coating toughness under deformation |
| Salt spray | ASTM B117, ISO 9227 | Corrosion resistance comparison |
| Color difference | ASTM D2244, ISO 7724 | Color consistency measurement |
| Gloss | ASTM D523, ISO 2813 | Surface gloss measurement |
Mechanical and Coating Test Data
Actual values vary by alloy, temper, thickness, and coating type. The data in this table helps customers define purchase requirements during inquiry and sample approval.
| Test Item | Typical Requirement | Test Method |
|---|---|---|
| Tensile strength | 75-260 MPa | According to alloy and temper |
| Elongation | 2-35% | Depends on thickness and temper |
| T-bend | 0T-3T | ASTM D4145 or equivalent |
| Pencil hardness | HB-2H | ASTM D3363 |
| Adhesion | Grade 0-1 | ISO 2409 |
| Impact resistance | ≥50 kg·cm | ASTM D2794 |
| MEK rubbing | ≥100 double rubs for many systems | Solvent resistance test |
| Salt spray resistance | 500-1500 h | Coating and pretreatment dependent |
| Color difference | ΔE usually ≤1.5 for same batch | Instrument measurement |
| Gloss tolerance | ±5 GU | 60 degree gloss meter |
Applications Across Industries
Prepainted color coated aluminum strip coil is supplied as a semi-finished material for continuous production lines. It is easy to slit, punch, fold, laminate, emboss, and roll form. This makes it suitable for both decorative and functional parts.
| Industry | Application | Recommended Alloy and Coating |
|---|---|---|
| Building decoration | Ceiling strips, edge trim, wall strips, louvers | 3003, 3004, 3105 with PE or PVDF |
| Roofing systems | Gutter, downspout, flashing, ridge cap | 3003, 3105 with HDP or PVDF |
| Door and window | Shutter strip, roller shutter, frame decoration | 3004, 3105 with PE, HDP, or PVDF |
| Signage | Channel letter, sign strip, advertising panels | 1060, 1100, 3003 with PE or FEVE |
| Lighting | Reflector trim, lamp housing decoration | 1050, 1060 with high-gloss coating |
| Appliances | Refrigerator trim, air conditioner panel strip | 1100, 3003 with PE or epoxy modified coating |
| Packaging | Bottle cap strip, closure strip, cosmetic packaging | 8011, 1060, 3105 with food-compatible coating when required |
| Transport | Vehicle interior trim, trailer decoration | 3003, 5052 with durable coating |
Purchasing Notes for Better Results
When ordering prepainted color coated aluminum strip coil, buyers should define alloy, temper, thickness, width, coil ID, coating type, color, gloss, surface finish, paint thickness, film protection, and testing requirements. For outdoor projects, the environment matters: high UV areas, coastal air, industrial pollution, and freeze-thaw cycles require stronger coating systems.
Packing is also important. Export coils are usually protected with moisture-proof paper, plastic film, edge guards, steel or wooden pallets, and outer wrapping. For narrow strip, eye-to-wall or eye-to-sky packing can be selected according to handling equipment.
Why It Works for Modern Manufacturing
Prepainted color coated aluminum strip coil helps factories improve speed, reduce finishing steps, and maintain visual consistency. With the right alloy, temper, pretreatment, and coating system, it can deliver reliable bending performance, attractive color, corrosion resistance, and long service life. It is a practical material for customers who need ready-to-process aluminum strip with controlled quality and flexible design possibilities.
